Rubber Tread Making Plant /tire tread making machine / vulcanizing press

Brand Name : HHS

Model Number : XLB800-2200

Certification : CE

Place of Origin : Qingdao Shangdong

MOQ : 1 set

Price : USD 50000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60 sets/Year

Delivery Time : 15-30 work days

Packaging Details : Wooden cases / Containers, etc

Type : Vulcanizer

Colour : all colour

Voltage : customized

Power(W) : 11KW*2

Temperature : max 300 degree

Working Layers : 1-4layers

Plates : 300-2100mm

Hot Plates Material : Q-235 material.

Heating : electricity , steam heating , conduction oil heating .

Weight : 30000 kg

Contact Now

1. Product Application

Rubber vulcanizing press is used for vulcanizing various kinds of rubber and plastic mould products as well as
 non-mould products. And it can make tyre, O-rings, rubber floor tiles, slippers and other rubber products.

2. Product Paramenters

Model	XLB-800*800	XLB-1000*1000	XLB-1200*1200
mold closing force	160 ton	200 ton	250 ton
plate size	800*800mm	1000*1000mm	1200*1200mm
quantity of cylinder	1 set	1 set	1 set
piston diameter	300mm	380mm	380mm
working layer	1	1	1
daylight	300mm	300mm	300mm
unit area pressure	2.5 Mpa	2.0Mpa	1.8Mpa
Main motor	3 kw	5.5 kw	8 kw
machine weight	about 4000 kg	about 5800kg	about 6800 kg

Rubber Tread Making Plant /tire tread making machine / vulcanizing press

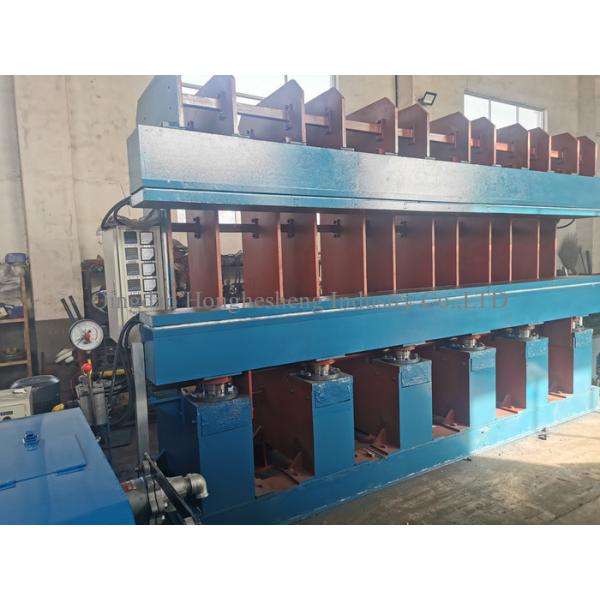

Rubber Tread Making Plant /tire tread making machine / vulcanizing press Images
