CE ISO Two Roll Rubber Open Mixing Mill 18"X18"

Name: CE ISO Two Roll Rubber Open Mixing Mill 18quotX18quot
Brand: honghesheng
Price: 25000 USD

China CE ISO Two Roll Rubber Open Mixing Mill 18"X18" wholesale

Brand Name : honghesheng

Model Number : XK450

Certification : CE

Place of Origin : CHINA

MOQ : 1 SET

Price : USD25000-6000/SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200SETS/MONTH

Packaging Details : wood package /20/40GP/HC

After-sales service provided : Engineers available to service machinery overseas,Field installation,commissioning and training,Video technical support

Type : Open Mixing Mill

Roller hardness : 50~60HRC

Bush : nylon bush,bearing bush,ball bearing Bush

Voltage : 380V,Customer's Request,380V/50HZ,220/380V,AC380V

Power(w) : 37kw,4.5KW,20KW,5KW for lab two roll mill

Weight : 5200kgs,1000kg,2T

Dimension(l*w*h) : 1100*700*1200mm,1226x830x1295mm,1*1.1*1.4(M),1100*650*1500,1160*920 *1370mm

Warranty : 1 Year

Condition : New

Contact Now

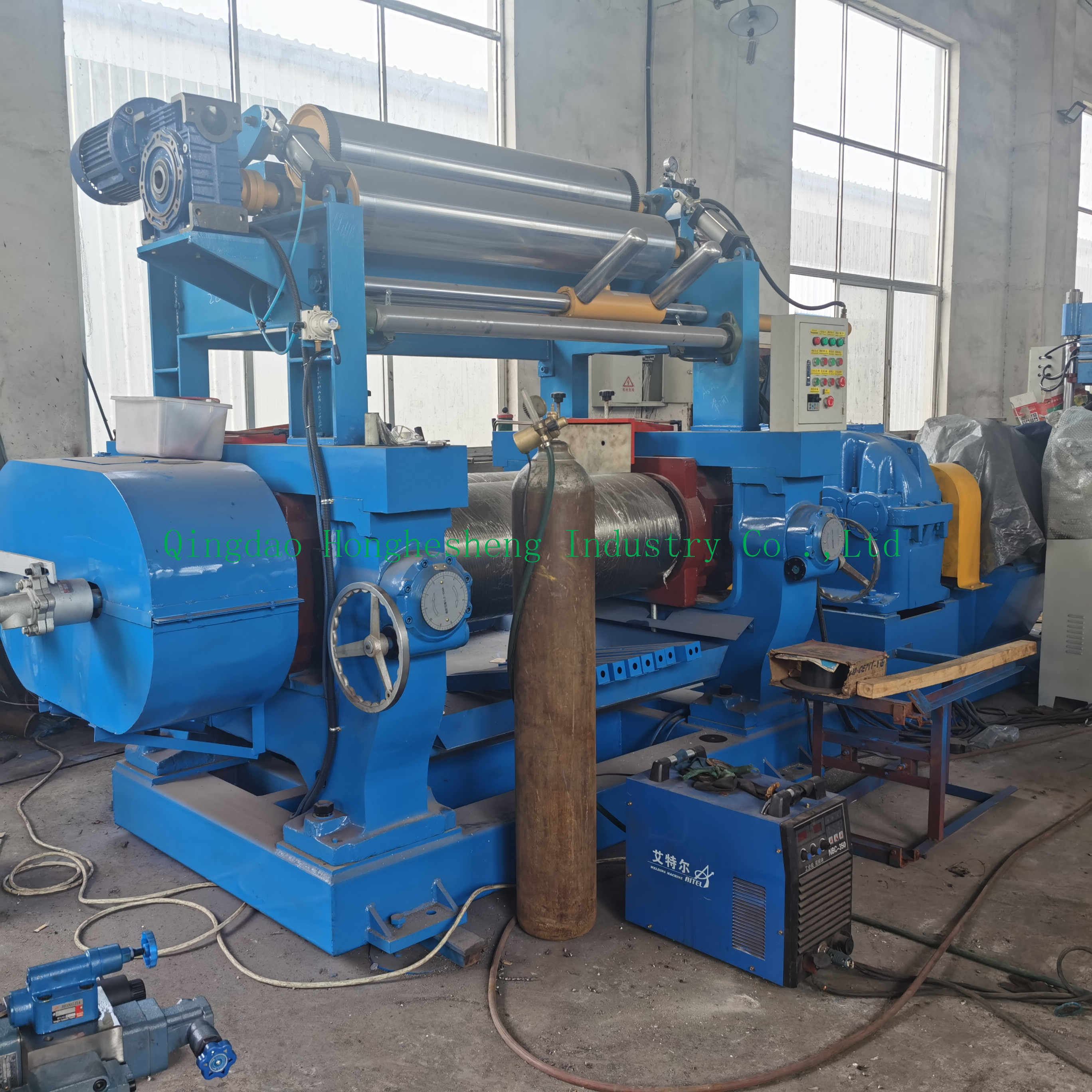

CE/ISO Factory sale Two Roll Rubber Open Mixing Mill 18"x18"

Application

This machine is mainly used in Rubber & Plastic Product factory for Natural Rubber Mixing(plasticating),Raw Rubber and Compound mixing,rubber warm-up mixing and pressing sheet.

consist of Base, frame, the rollers, drive system, roll gap adjustment device, heating and cooling device, safety brake, lubrication system, electric control system, motor and reducer etc.

Technical parameters:

Version	XK-160	XK-250	XK-300	XK-400	XK-450	XK-560	XK-660
Roll diameter(mm)	160	250	300	400	450	560	660
Working length of rolls(mm)	320	620	750	1000	1200	1530	2130
Front roll surface speed(m/min)	8.99	15.3	15.1	18.65	24.32	27.72	28.6
Friction ratio	1:1.35	1:1.1	1:1.27	1:1.27	1:1.27	1:1.2	1:1.24
Max.nip (mm)	4	8	8	10	15	15	15
Capacity per.batch (kg)	1-2	10-15	15-20	18-35	25-50	35-50	165
Motor power (kw)	5.5	18.5	22	37	55	90	245
Overall dimensions(mm)	1160920 1370	31201322 1500	35801550 1695	43501850 1780	56702390 1670	58452284 1978	74653662 2080
Weight(kg)	1000	4000	5200	7600	12000	23000	49000

CE ISO Two Roll Rubber Open Mixing Mill 18"X18"

Features:

1.The rolls of machine adopts titanium alloy chilled cast iron,its surface is smooth and hard,and the cavity is processed,water cooling way makes the surface temperature of the rolls be balance;

2.This machine adopts hardened reducer;

3.This machine adopts bearing,lubrication by grease or thin oil;

4.The roll gap adjustment method can be manual or electrical;

5.The electrical system adopts LS Components imported from South Korea;

6.This machine is set emergency stop button,easier operation than the traditional brake method,safety and reliable.
